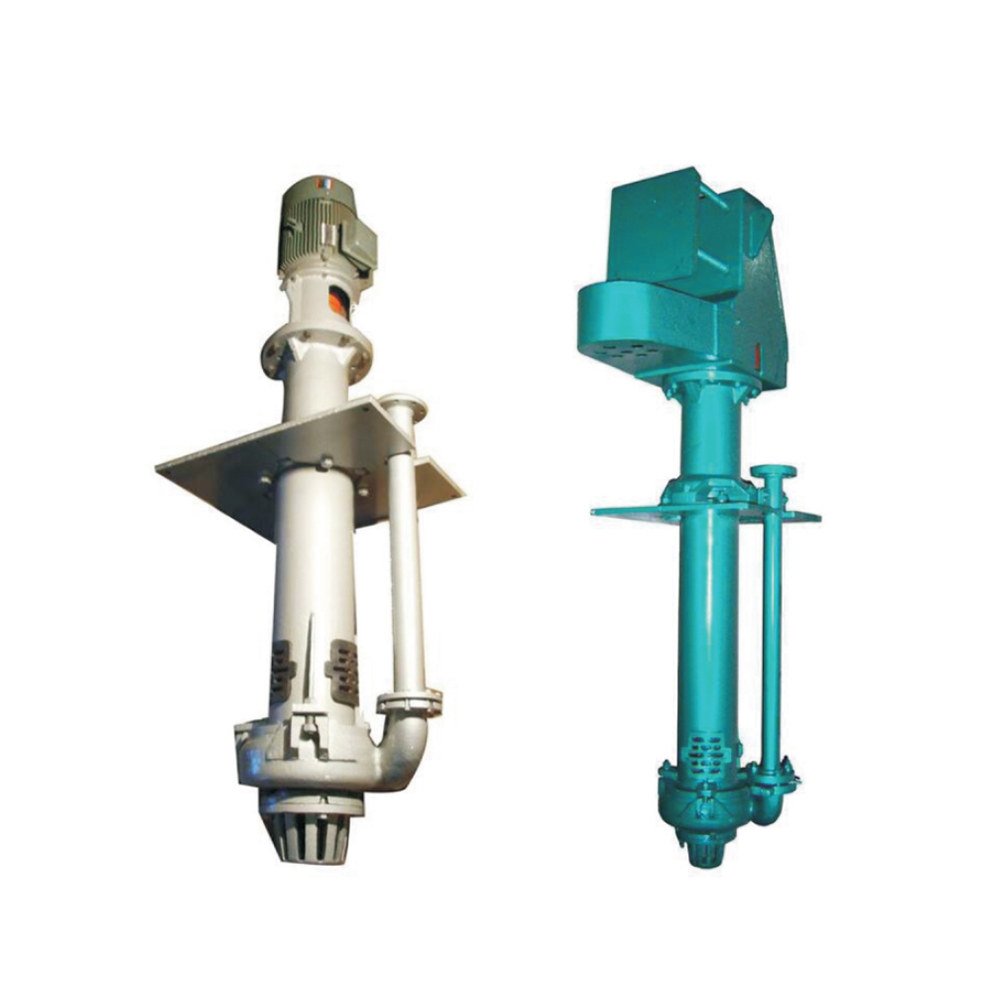

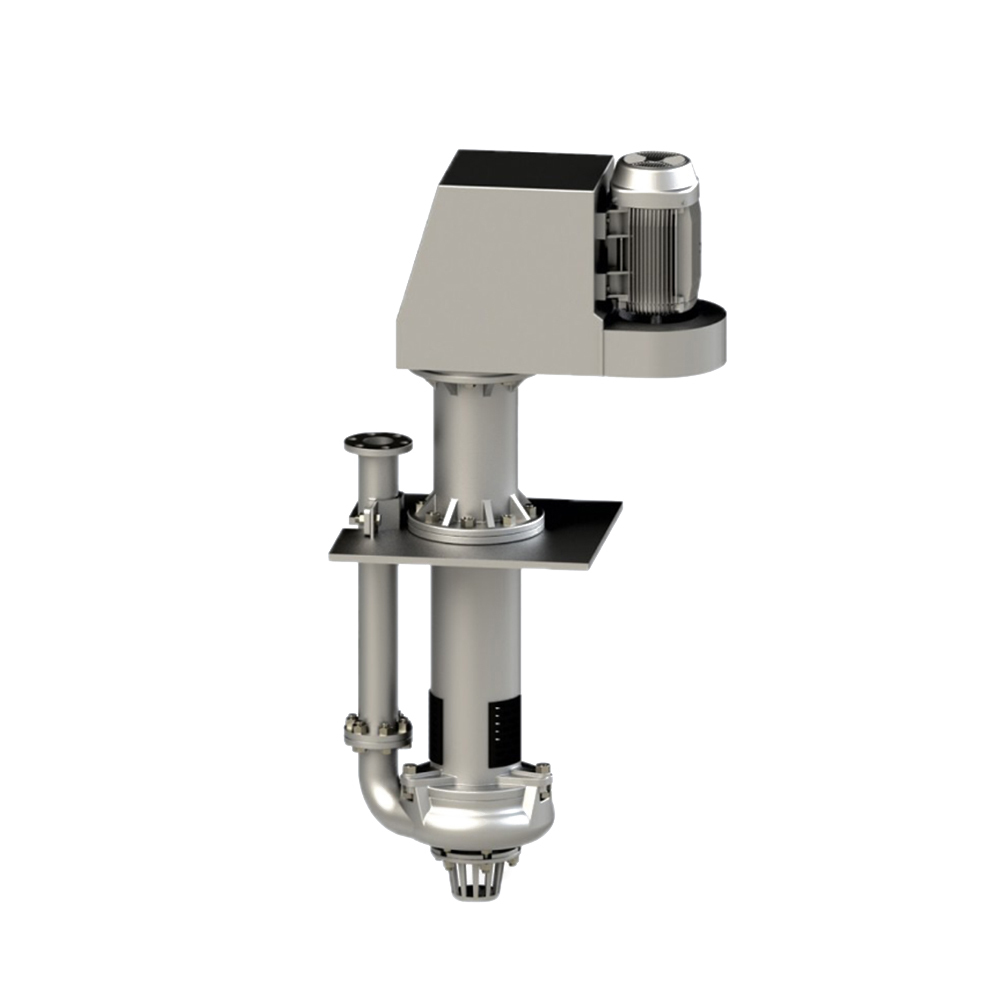

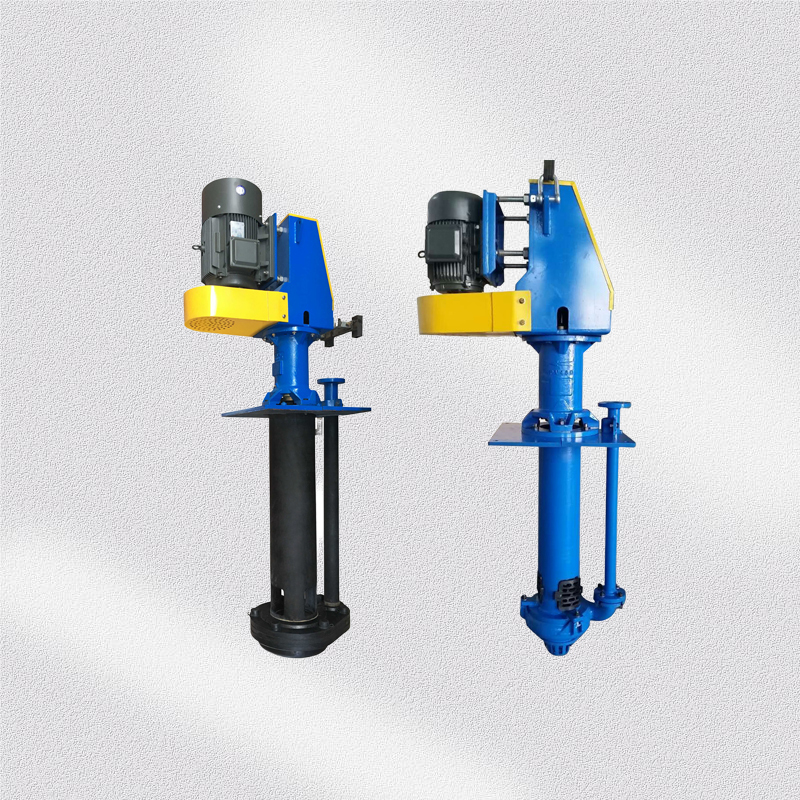

TSP(R) Series vertical slurry pumps are no submerged bearings or seals cantilevered pumps, which ideal for a variety of submerged suction pumping applications. These pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms.
Main Parts:
Impeller, Casing, Strainer, Discharge pipe, Frame Plate Liner Insert，etc
Main material:
Cr27,Cr28, Rubber liner,etc
Advantage:
1. Light weight, small size, easy installation, and can run smoothly at various speeds;
2. According to the working conditions, high chromium alloy or rubber-lined wet parts can be selected;
3. A slurry pump agitator can be installed to improve the conveying efficiency.
Specifications and Performance：
|
Type |
Allowable mating Max power |
Material |
Performance range |
Impeller |
||||||
|
Liner |
Impeller |
Capacity Q |
Head H |
Speed n |
Max, EFF (%) |
No. of vanes |
Impeller diameter (mm) |
|||
|
(m3 /h) |
(L/s) |
|||||||||
|
40PV(L)-TSP |
15 |
M |
M |
19.44-43.2 |
5.4-12 |
4.5-28.5 |
1000-2200 |
40 |
5 |
188 |
|
40PV(L)-TSPR |
RU |
RU |
17.28-39.6 |
4. 8-11 |
4-26 |
1000-2200 |
40 |
5 |
188 |
|
|
65QV (L) -TSP |
30 |
M |
M |
23.4-111 |
6.5-30.8 |
5-29.5 |
700-1500 |
50 |
5 |
280 |
|
65QV(L)-TSPR |
RU |
RU |
22.5-105 |
6.25- 29.15 |
5.5-30.5 |
700-1500 |
51 |
5 |
280 |
|
|
100RV(L)-TSP |
75 |
M |
M |
54-289 |
15-80.3 |
5-35 |
500-1200 |
56 |
5 |
370 |
|
100RV(L)-TSPR |
RU |
RU |
64.8-285 |
18-79.2 |
7.5-36 |
600-1200 |
62 |
5 |
370 |
|
|
150SV(L)-TSP |
110 |
M |
M |
108-479. 16 |
30-133.1 |
8.5-40 |
500-1000 |
52 |
5 |
450 |
|
200SV(L)-TSP |
110 |
M |
M |
189-891 |
152.5-247.5 |
6.5-37 |
400-850 |
64 |
5 |
520 |
|
250TV (L)-TSP |
200 |
M |
M |
261-1089 |
72.5-302.5 |
7.5-33.5 |
400-750 |
60 |
5 |
575 |
|
300TV(L)-TSP |
200 |
M |
M |
288-1267 |
80-352 |
6.5-33 |
350-700 |
50 |
5 |
610 |
