Main Parts:

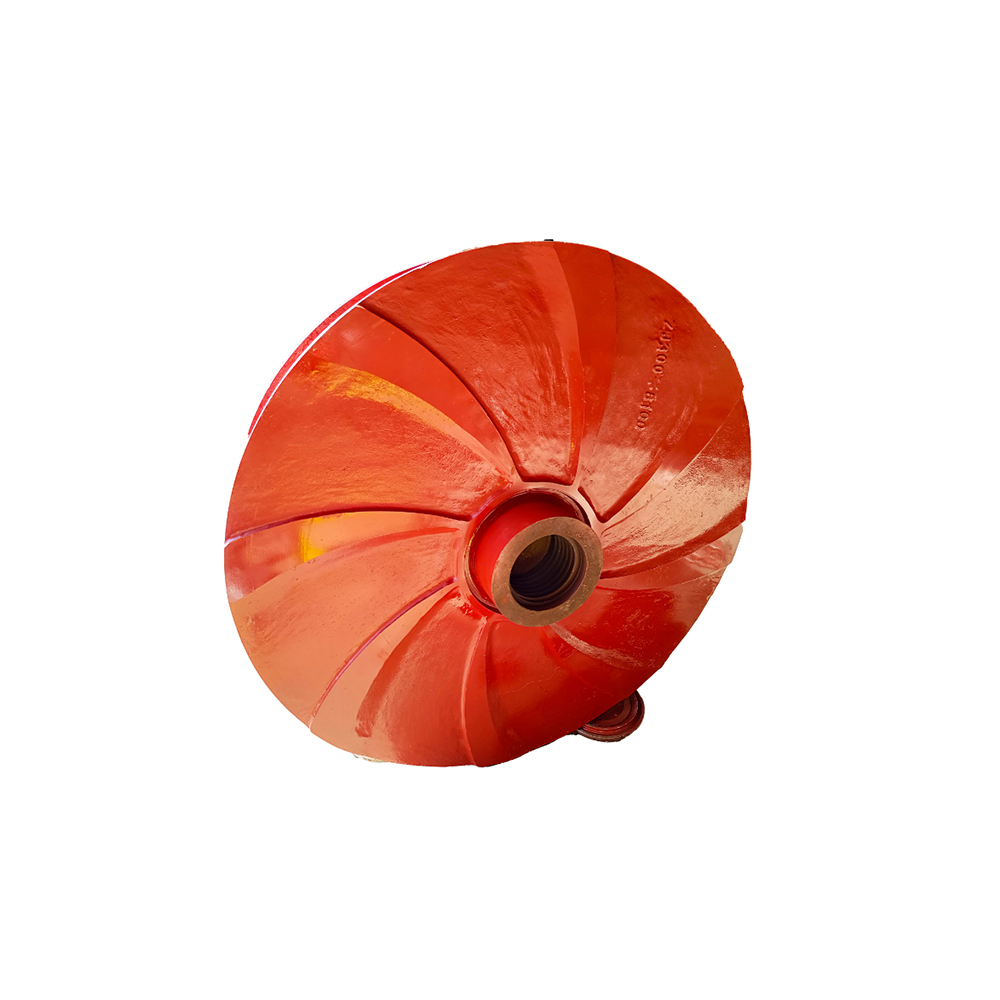

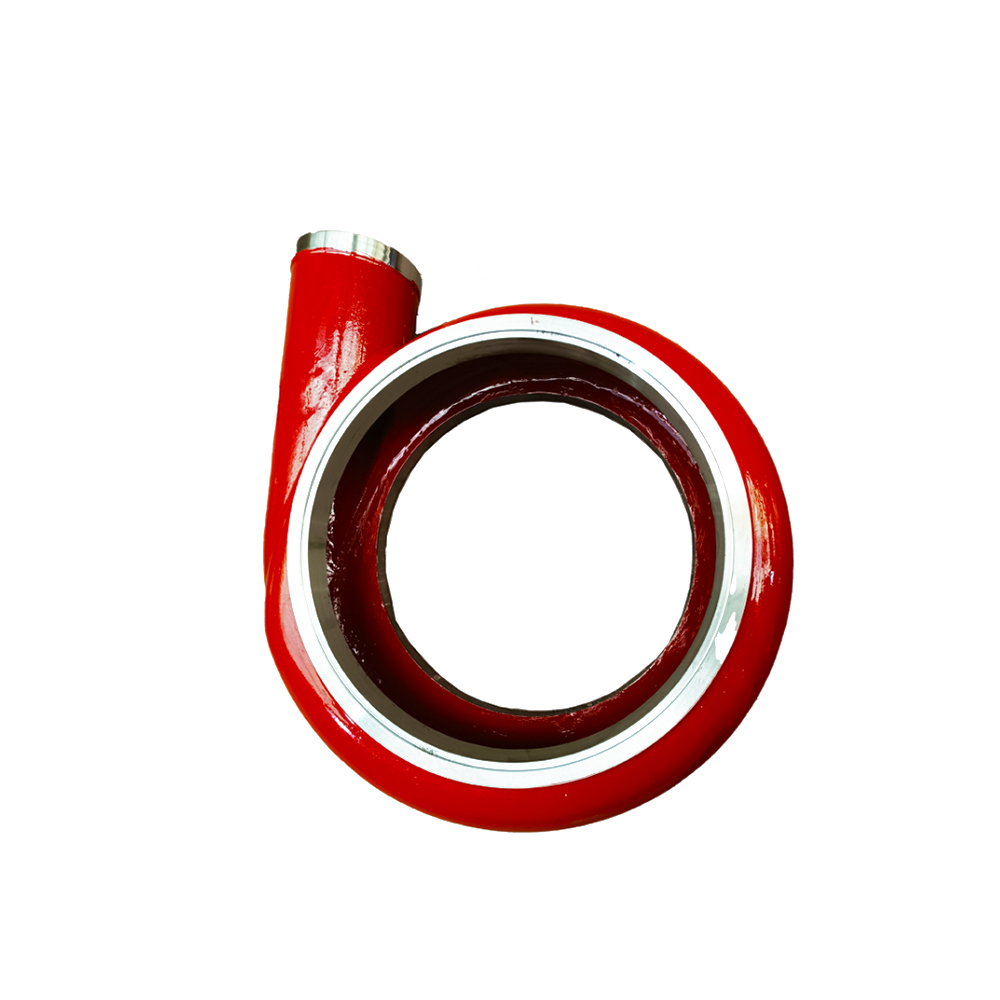

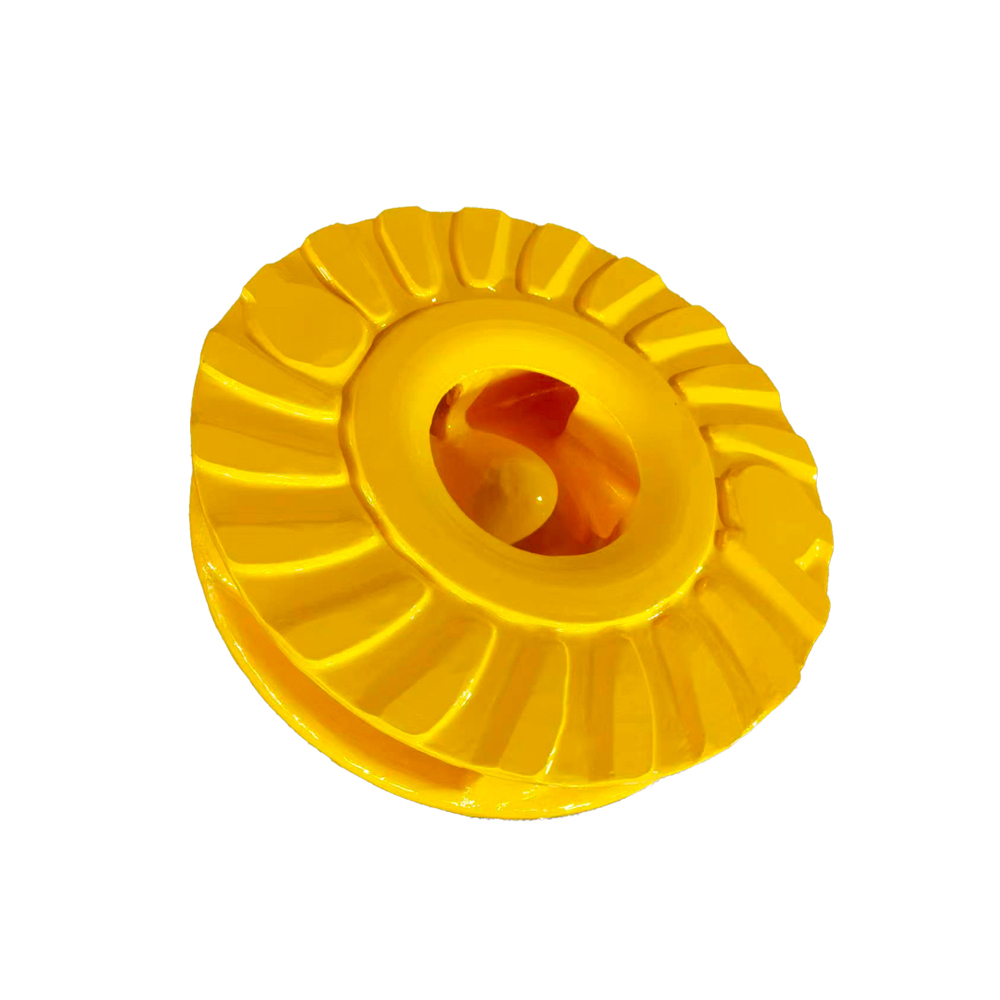

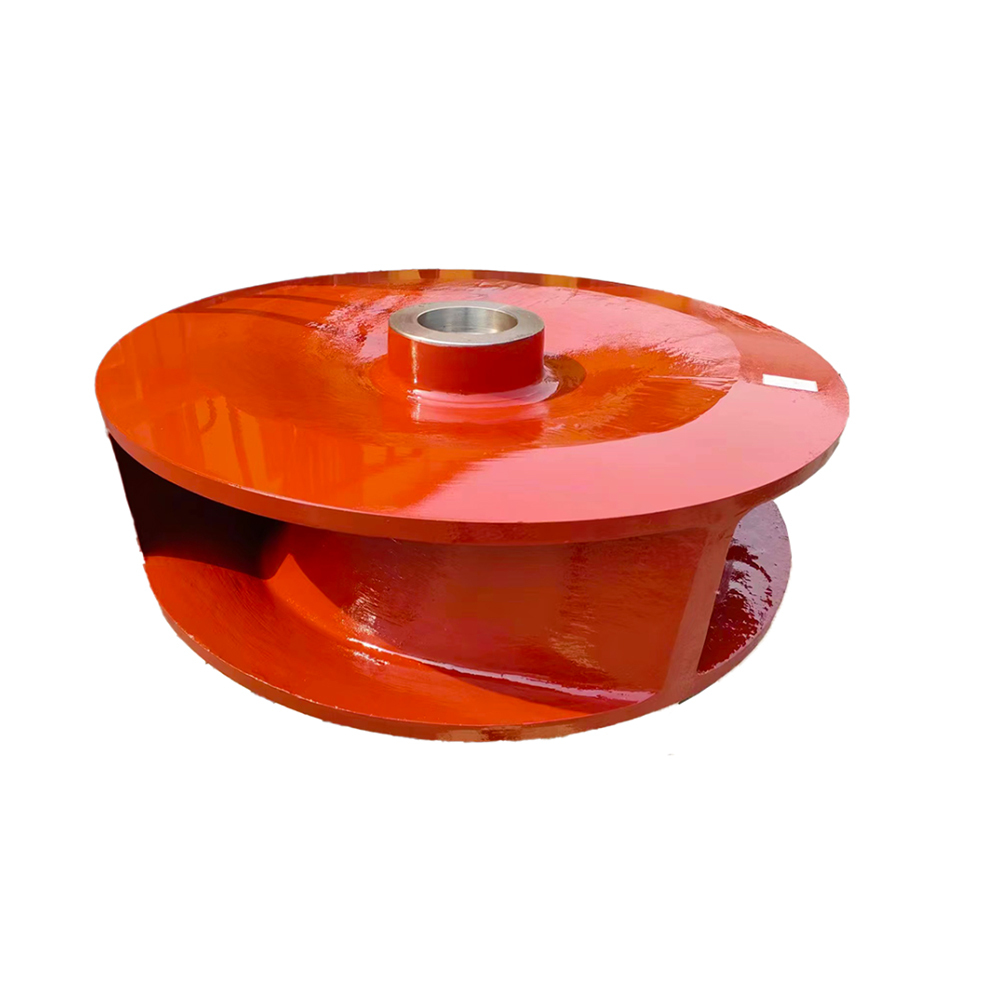

Impeller, Casing, Volute, Cover plate, Column Clamp, End Cover , Rear guard plate, Expeller, Bearing body, Keeper Plate, Lip Seal Gland , etc.
Main material:
Cr27,Cr28, Natural rubber, Synthetic rubber, etc.
Advantage:
Parts List：
|
No. |
Parts |
No. |
Parts |
|
|
1 |
Adjusting Screw Assy. |
56 |
Impeller Boss Cap |
|
|
2 |
Alignment Pin |
57 |
Impeller |
|
|
3 |
Anti-Rotation Nut |
58 |
Impeller O-Ring |
|
|
4 |
Bearing |
59 |
Impeller Release Collar |
|
|
5 |
Bearing Assembly |
60 |
Intake Joint |
|
|
6 |
Bearing Housing |
61 |
Intake or Discharge Flange |
|
|
7 |
Bearing Isolator |
62 |
Keeper Plate |
|
|
8 |
Bearing Seal |
63 |
Labyrinth |
|
|
9 |
Bearing Sleeve |
64 |
Labyrinth Locknut |
|
|
10 |
Bowl |
65 |
Lantern Restrictor |
|
|
11 |
Casing |
66 |
Lantern Restrictor(Low Flow) |
|
|
12 |
Clamp Bolts Assy. |
67 |
Lantern Ring |
|
|
13 |
Clamp Plate |
68 |
Lifting Beam |
|
|
14 |
Clamp Washer |
69 |
Lifting Tube |
|
|
15 |
Column |
70 |
Lip Seal |
|
|
16 |
Column Clamp |
71 |
Lip Seal Gland |
|
|
17 |
Cotter |
72 |
Locating Nut |
|
|
18 |
Cover Plate |
73 |
Lock Nut |
|
|
19 |
Cover Plate Bolt |
74 |
Lower Strainer |
|
|
20 |
Cover Plate Liner |
75 |
Mounting Plate |
|
|
21 |
Cover Plate Studs |
76 |
Neck Ring |
|
|
22 |
Discharge Bend |
77 |
Nut Covers |
|
|
23 |
Discharge Joint |
78 |
Packing |
|
|
24 |
Discharge Joint Holder |
79 |
Packing Retain |
|
|
25 |
Discharge Joint Ring |
80 |
Piston Ring |
|
|
26 |
Discharge Pipe |
81 |
Ring Compressor |
|
|
27 |
Discharge Pipe Gasket |
82 |
Seal Guard |
|
|
28 |
Door Clamp Plate |
83 |
Seal Insert |
|
|
29 |
Dyna Seal |
84 |
Shaft |
|
|
30 |
End Cover |
85 |
Shaft Clamp |
|
|
31 |
End Cover Bolt Assy. |
86 |
Shaft Key |
|
|
32 |
Expeller |
87 |
Shaft O-Ring |
|
|
33 |
Expeller Ring |
88 |
Shaft Sleeve |
|
|
34 |
Expeller Ring Stud Assy. |
89 |
Shaft Sleeve (Long) |
|
|
35 |
Expeller Ring/Stuffing Box Seal |
90 |
Shaft Sleeve Ejector |
|
|
36 |
Flinger |
91 |
Shaft Spacer |
|
|
37 |
Flushing Pipe Adaptor |
92 |
Shaft Wrench |
|
|
38 |
Frame |
93 |
Shear Ring |
|
|
39 |
Frame Plate |
94 |
Shim/End Cover Gasket |
|
|
40 |
Frame Plate Adapter |
95 |
Socket Head Protector |
|
|
41 |
Frame Plate Liner |
96 |
Spacer |
|
|
42 |
Frame Plate Liner Bush |
97 |
Split Discharge Flange |
|
|
43 |
Frame Plate Liner Insert |
98 |
Stepped Washer |
|
|
44 |
Frame Plate Liner Insert Bolts/Bolts |
99 |
Strainer |
|
|
45 |
Frame Plate Liner Stud Assy. |
100 |
Stuffing Box |
|
|
46 |
Frame Plate Stud |
101 |
Suction Cover |
|
|
47 |
Front Liner Stud Assy. |
102 |
Suction Pipe |
|
|
48 |
Gland Assembly |
103 |
Throatbush |
|
|
49 |
Gland bolt Assy. |
104 |
Throatbush Studs |
|
|
50 |
Gland Clamp Bolt |
105 |
Volute Clamp Bolt |
|
|
51 |
Gland Regulating Screw |
106 |
Volute Frame Seal |
|
|
52 |
Grease Cup Adaptor |
107 |
Volute Lifting Beam |
|
|
53 |
Grease Retainer |
108 |
Volute Liner |
|
|
54 |
Holder |
109 |
Volute Liner Seal |
|
|
55 |
Hopper |
110 |
Volute Liner Seat Ring |
Note：Please contact us for specific specifications and sizes..
