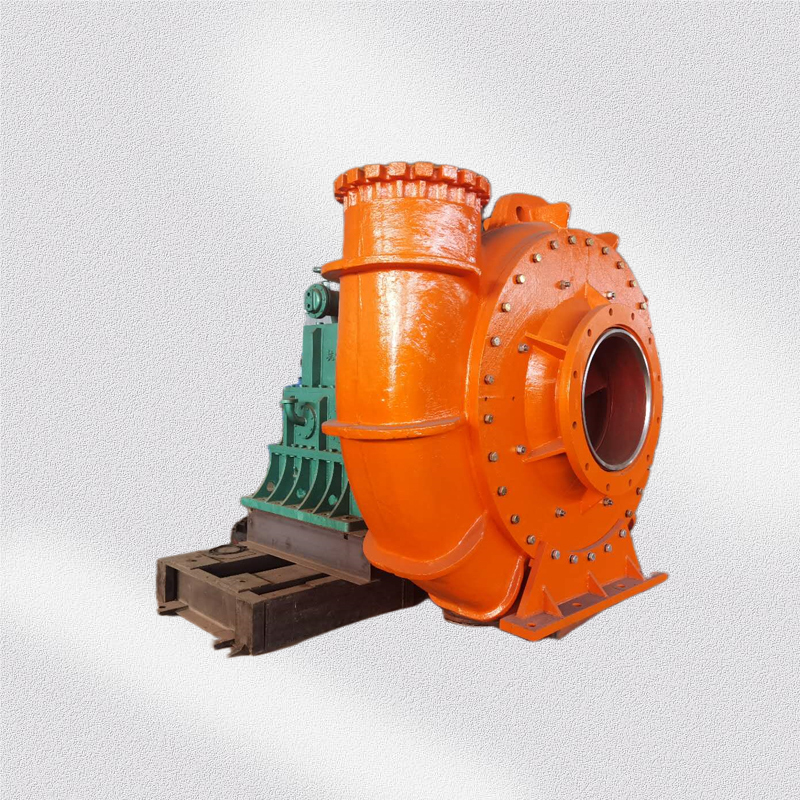

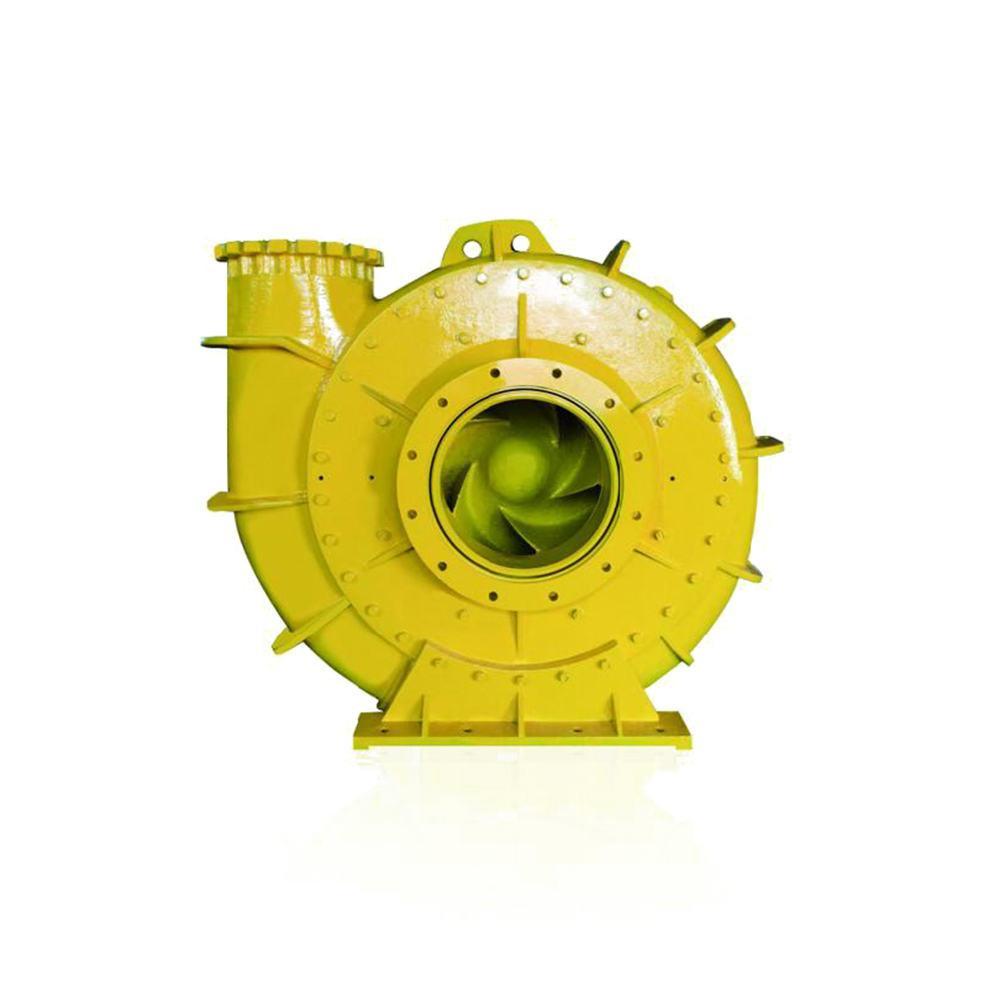

WN(Q) series is a new dredge pump developed by our company adopting advanced CAD technology, the dredge pump is widely used in cutter head dredger or other dredging equipments. The pump is horizontal single-stage single-suction cantilever structure. The double casing structure can guarantee long-term safe and reliable running.
Main Parts:
Impeller, Casing, Bearing assembly, Frame Plate Liner Insert，etc
Main material:
Cr27,Cr28, etc.
Advantage:
1. The WN type is used in the cabin, and the WNQ type is used underwater, which meets the mud requirements of different hull structures and has wide applicability;
2. Through optimized design, the WN(Q) dredging pump has good performance, strong suction capacity of mud, large digging depth and high concentration;
3. Excellent wear resistance, long service life of flow parts;
4. Using CFD for flow field simulation, the dredging pump has high efficiency and avoids internal flow in the flow channel.
Specifications and Performance：
|
Type |
CAPACITY |
HEAD |
SPEED |
EFFICIENCY |
NPSHr |
INLET DIAMETER |
OUTLET DIAMETER |
MAX. DIAMETER OF FLOWD PARTICE |
|
300WN (QQ) |
1800-2200 |
20-65 |
300-550 |
70-78 |
<4 |
350 |
300 |
240 |
|
450WN (Q) |
3200-3800 |
20-67 |
250-550 |
70-78 |
<4.5 |
600 |
450 |
240 |
|
500WN (Q) |
4500-5800 |
20-65 |
250-550 |
74-80 |
<4.5 |
650 |
500 |
240 |
|
600WN (Q) |
5000-7000 |
20-650 |
250-550 |
74-80 |
<4.5 |
660 |
600 |
250 |
|
650WN (Q) |
6000-9000 |
20-70 |
200-400 |
75-85 |
<5.5 |
700 |
650 |
260 |
|
700WN(Q) |
7500-1200 |
20-75 |
200-400 |
78-85 |
<5.5 |
760 |
700 |
280 |
|
800WN (Q) |
10000-15000 |
20-78 |
200- 380 |
80-84 |
<6 |
900 |
800 |
300 |
|
900WN (Q) |
12000-19000 |
20-75 |
180-350 |
80-85 |
<6 |
960 |
900 |
320 |
|
1000WN (Q) |
16000 - 25000 |
20-78 |
180-350 |
80-85 |
<6 |
1000 |
1000 |
350 |
Note：For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.
