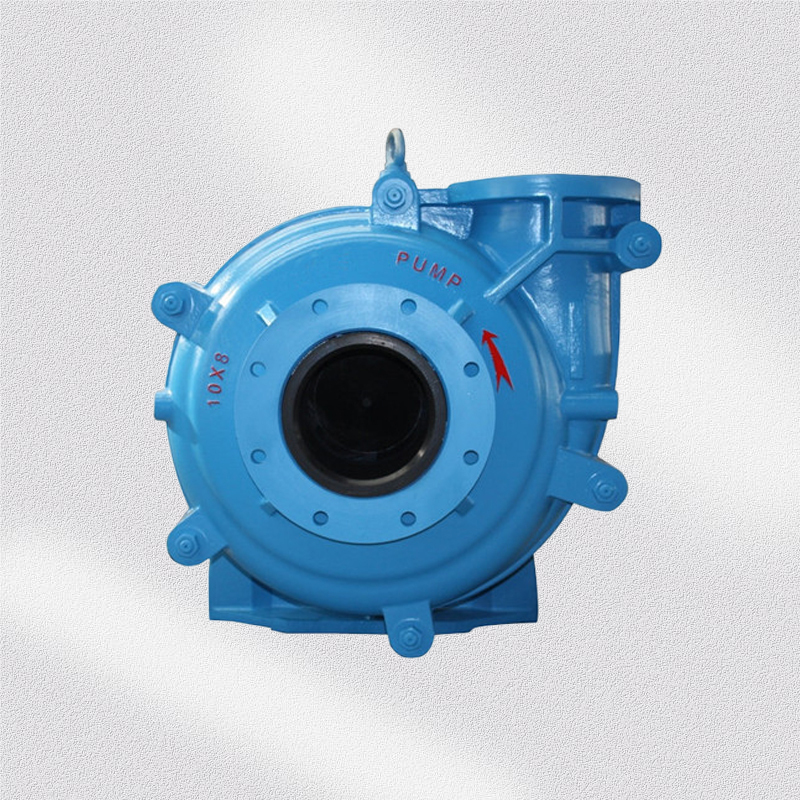

THR rubber lined slurry pumps are similar to TH metal lined slurry pump in structure. The main difference between TH and THR is the material of wetted parts, which are natural rubber, synthetic rubber or other wear-resistant rubbers. THR rubber lined slurry pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

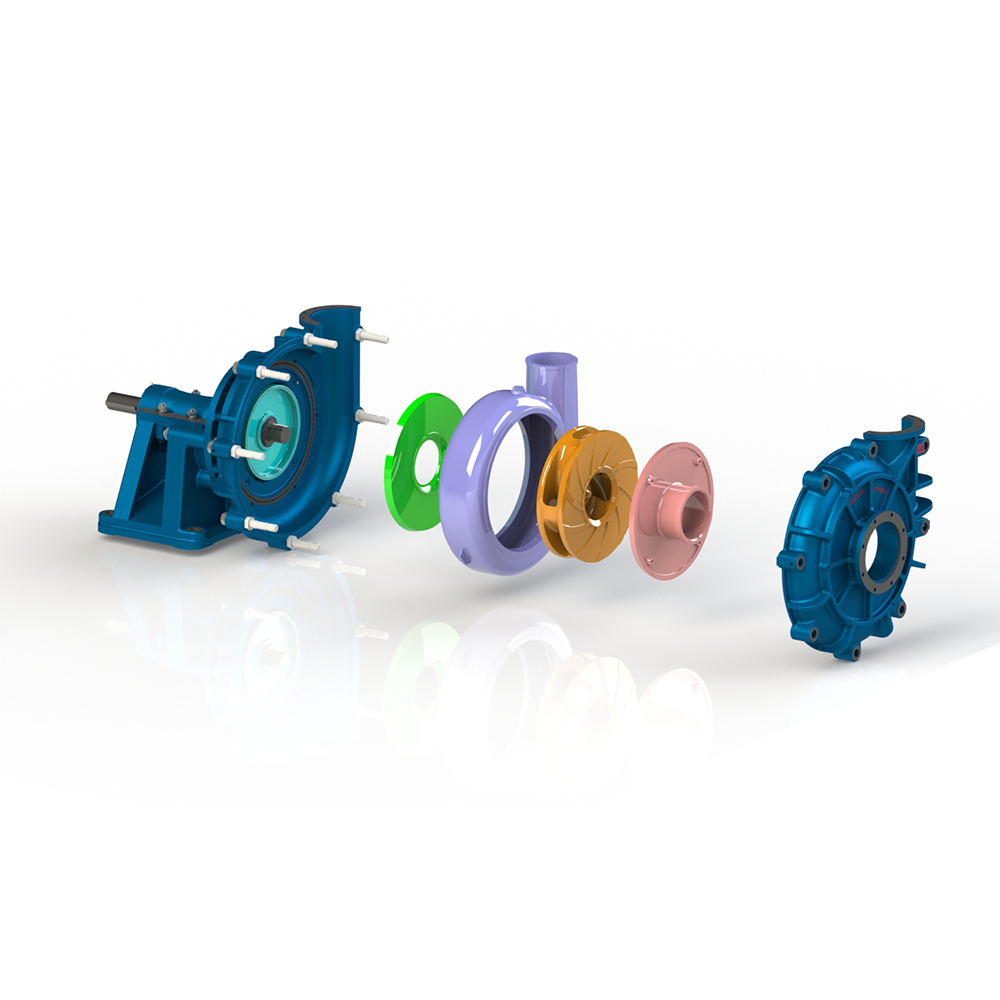

Main Parts:
IMPELLER，LINER，STUFFING BOX，EXPELLER SEAL, VOLUTE，CASING，BEARING ASSEMBLY，PUMP BASE, etc.
Main material:
Natural rubber, Synthetic rubber or other wear-resistant rubbers.
Advantage:
1. It can be used in various working conditions and is the most commonly used product.
2. Various high-quality rubber materials meet the working conditions under different corrosion conditions.
3. Spare parts are standardized and easy to purchase.
NOTE:
* Tinda® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Tinda® THR rubber lined slurry pumps and spares are only interchangeable with Warman® AHR rubber lined slurry pumps and spares.
* This document is the property of Tinda® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
---------------------------------------------
Specifications and Performance：
|
Type |
Max. Power (kw) |
Materials |
Clear water performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
|
1.5/1B-THR |
15 |
Rubber |
Rubber |
10.8-25.2 |
7-52 |
1400-3400 |
35 |
2-4 |
3 |
|
2/1.5B-THR |
15 |
Rubber |
Rubber |
25.2-54 |
5.5-41 |
1000-2600 |
50 |
3.5-8 |
5 |
|
3/2C-THR |
30 |
Rubber |
Rubber |
36-75.6 |
13-39 |
1300-2100 |
55 |
2-4 |
5 |
|
4/3C-THR |
30 |
Rubber |
Rubber |
79.2-180 |
5-34.5 |
800-1800 |
59 |
3-5 |
5 |
|
4/3D-THR |
60 |
Rubber |
Rubber |
79.2-180 |
5-34.5 |
800-1800 |
59 |
3-5 |
5 |
|
6/4D-THR |
60 |
Rubber |
Rubber |
144-324 |
12-45 |
800-1350 |
65 |
3-5 |
5 |
|
6/4E-THR |
120 |
Rubber |
Rubber |
144-324 |
12-45 |
800-1350 |
65 |
3-5 |
5 |
|
8/6E-THR |
120 |
Rubber |
Rubber |
324-720 |
7-49 |
400-1000 |
65 |
5-10 |
5 |
|
8/6R-THR |
300 |
Rubber |
Rubber |
324-720 |
7-49 |
400-1000 |
65 |
5-10 |
5 |
|
10/8ST-THR |
560 |
Rubber |
Rubber |
540-1188 |
12-50 |
400-750 |
75 |
4-12 |
5 |
|
10/8E-M |
120 |
Rubber |
Rubber |
540-1188 |
10-42 |
500-900 |
79 |
5-9 |
5 |
|
12/10ST-THR |
560 |
Rubber |
Rubber |
720-1620 |
7-45 |
300-650 |
80 |
2.5-7.5 |
5 |
|
14/12ST-THR |
560 |
Rubber |
Rubber |
1152-2520 |
13-44 |
300-500 |
79 |
3-8 |
5 |
|
16/14ST-THR |
560 |
Rubber |
Rubber |
1368-3060 |
11-63 |
250-550 |
79 |
4-10 |
5 |
|
18/16TU-THR |
1200 |
Rubber |
Rubber |
2160-5040 |
8-66 |
200-500 |
80 |
4.5-9 |
5 |
|
20/18TU-THR |
1200 |
Rubber |
Rubber |
2520-5400 |
13-57 |
200-400 |
85 |
5-10 |
5 |
Note：For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.
