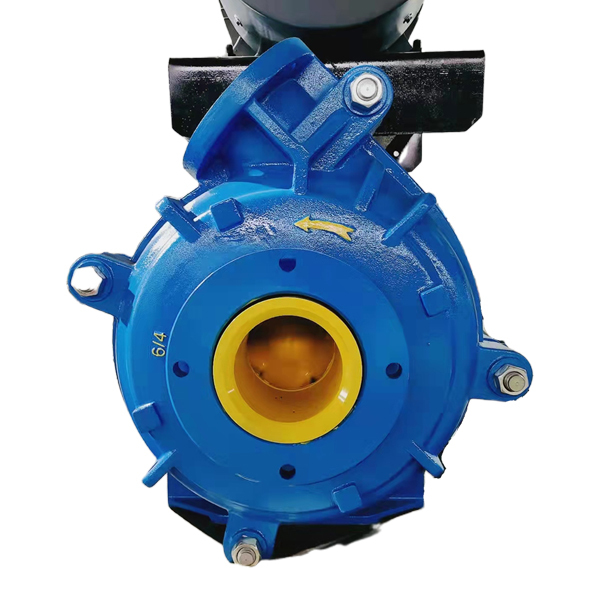

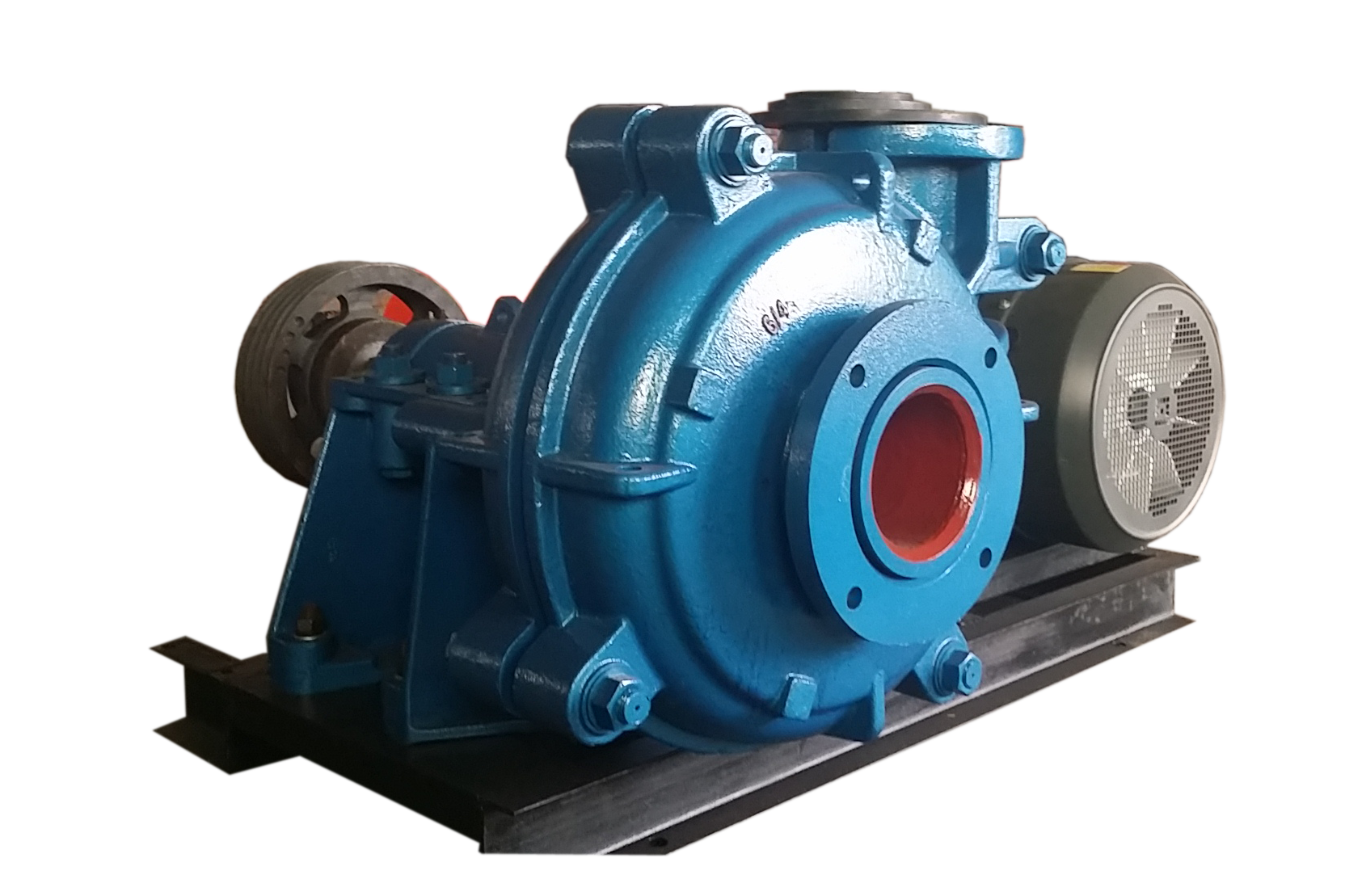

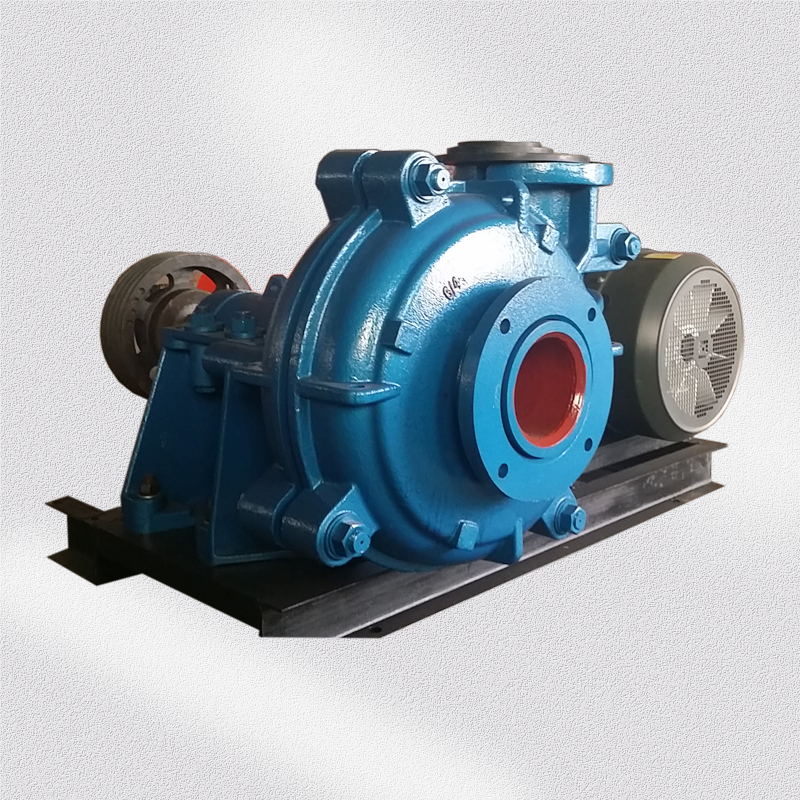

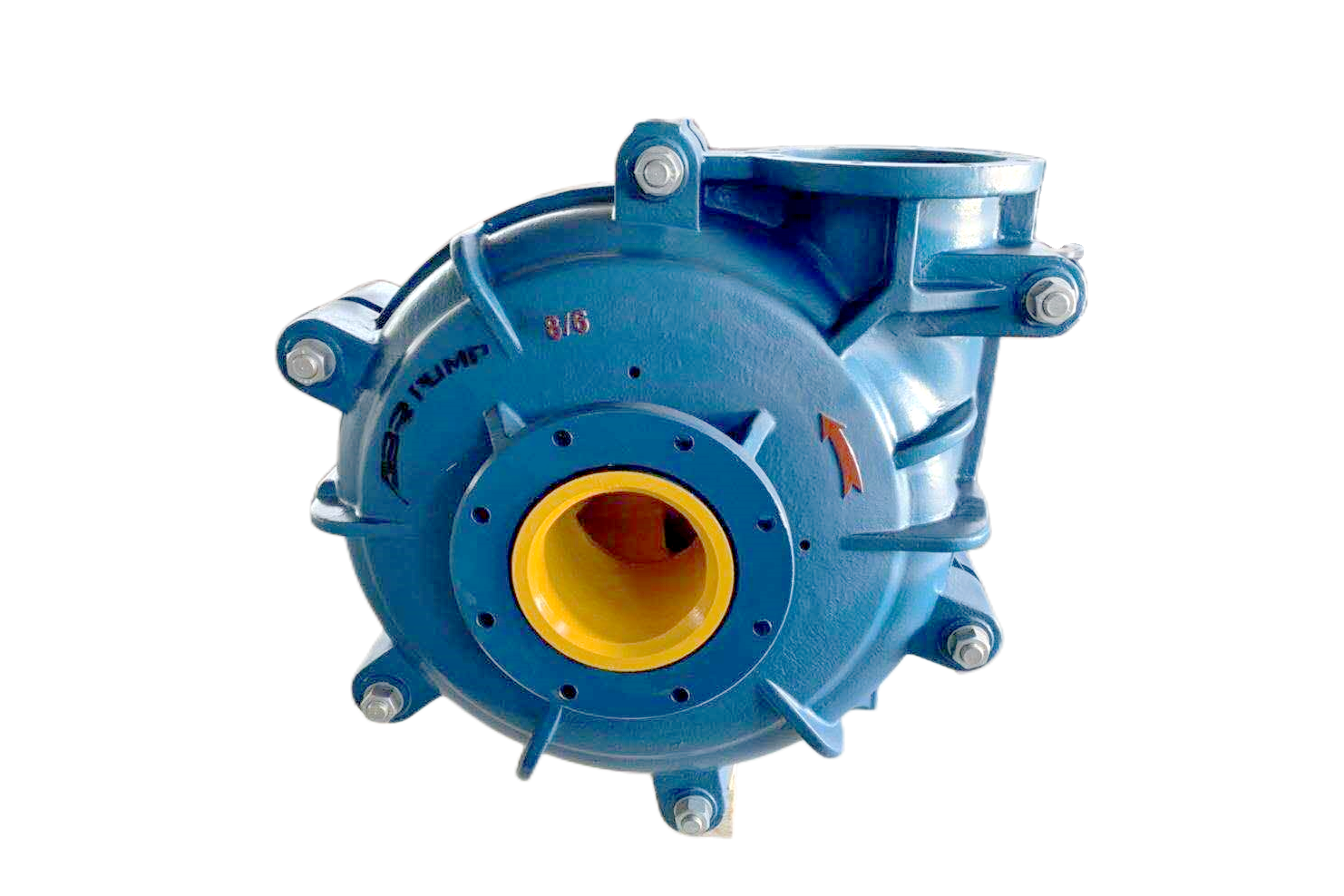

TH Heavy-Duty Slurry Pumps

SPECIFICATION

TH Series centrifugal horizontal heavy duty slurry pumps are designed for the continuous pumping of highly abrasive, dense slurries in processes from hydrocyclone feed to regrind, flotation and tailings. TH Series slurry pumps using for handing strong abrasive, high density slurries, high head slurries in the mining, metallurgical, coal, power, building material and other industrial departments.

Main Parts:

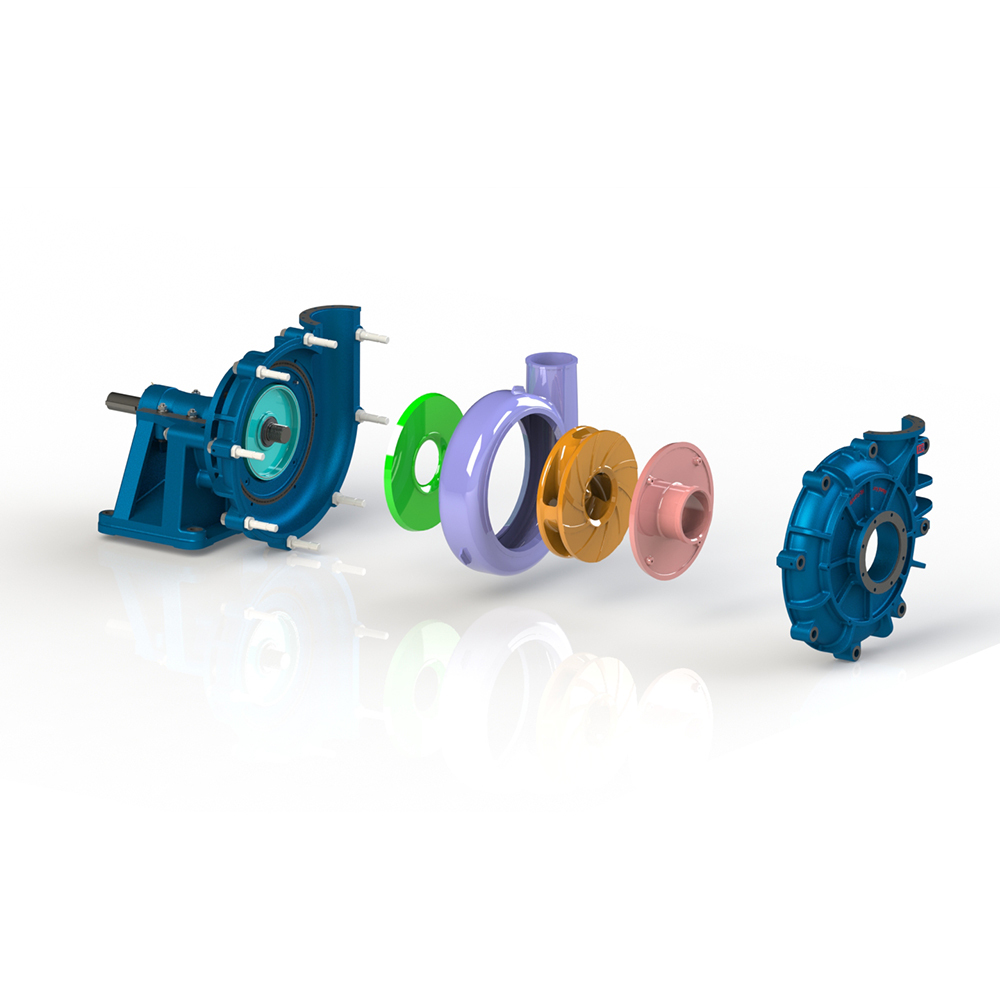

IMPELLER，LINER，STUFFING BOX，EXPELLER SEAL, VOLUTE，CASING，BEARING ASSEMBLY，PUMP BASE, etc.

Main material:

Cr27,Cr28,CD4Mcu, etc.

Advantage:

1. It can be used in various working conditions and is the most commonly used product.

2. Highly wear-resistant, with a hardness of more than 60.

3. Spare parts are standardized and easy to purchase.

NOTE:

* Tinda® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

* Tinda® TH series slurry pumps and spares are only interchangeable with Warman® AH slurry pumps and spares.

* This document is the property of Tinda® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.

Specifications and Performance：

TYPE	Material		Allowable Max.	Clear Water Performance					Impeller
	Liner	Impeller	Power	Capacity Q		Head	Speed	Max	Impeller Diameter
			P(Kw)	Capacity Q		H(m)	N(rpm)	Efficiency	D(mm)
				m³/h	l/s			η(%)
1.5/1 B-TH	M	M	15	12.6--28.8	3.5-8	6--68	1200--3800	40	152
1.5/1 B-TH	RU	RU	15	10.8--25.5	3-7	7--52	1400--3400	35	152
2/1.5 B-TH	M	M	15	32.4--72	9-20	6--58	1200--3200	45	184
2/1.5 B-TH	RU	RU	15	25.2--54	7-15	5.5--41	1000--2600	50	178
3/2 C-TH	M	M	30	39.6--86.4	11-24	12--64	1300--2700	55	214
3/2 C-TH	RU	RU	30	36--75.6	10-21	13--46	1300--2300	60	213
4/3 C-TH	M	M	30	86.4--198	24-55	9--52	1000--2200	71	245
4/3 C-TH	RU	RU	30	79.2--180	22-50	5--34.5	800--1800	59	245
6/4 D-TH	M	M	60	162--360	40-100	12--56	800--1550	65	365
6/4 D-TH	RU	RU	60	144--324	40-90	12--45	800--1350	65	365
8/6 R-TH	M	M	300	360--828	100-230	10--61	500--1140	72	510
8/6 R-TH	RU	RU	300	324--720	90-200	7--49	400--1000	65	510
10/8 ST-TH	M	M	560	612--1368	170-380	11--61	400--850	71	686
10/8 ST-TH	RU	RU	560	540--1188	150-330	12--50	400--750	75	686
12/10 ST-TH	M	M	560	936--1980	260-550	7--68	300--800	82	762
12/10 ST-TH	RU	RU	560	720--1620	200-450	7--45	300--650	80	762
14/12 ST-TH	M	M	560	1260--2772	350-770	13--63	300--600	77	965
14/12 ST-TH	RU	RU	560	1152--2520	320-700	13--44	300--500	79	965
16/14 TU-TH	M	M	1200	1368--3060	380-850	11--63	250--550	79	1067
20/18 TU-TH	M	M	1200	2520--5400	700-1500	13--57	200--400	85	1370

Note：1.For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.

2. "M" stands for alloy wear-resistant material, "RU" stands for rubber material.

Application and ReferenceSeries
TH slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.

Typical Applications

1. Coal washing plants

2. Mining

3. Oil and gas

4. Sand and gravel plants

5. Dredging for mineral sands

6. Ash handling facilities attached to power stations
