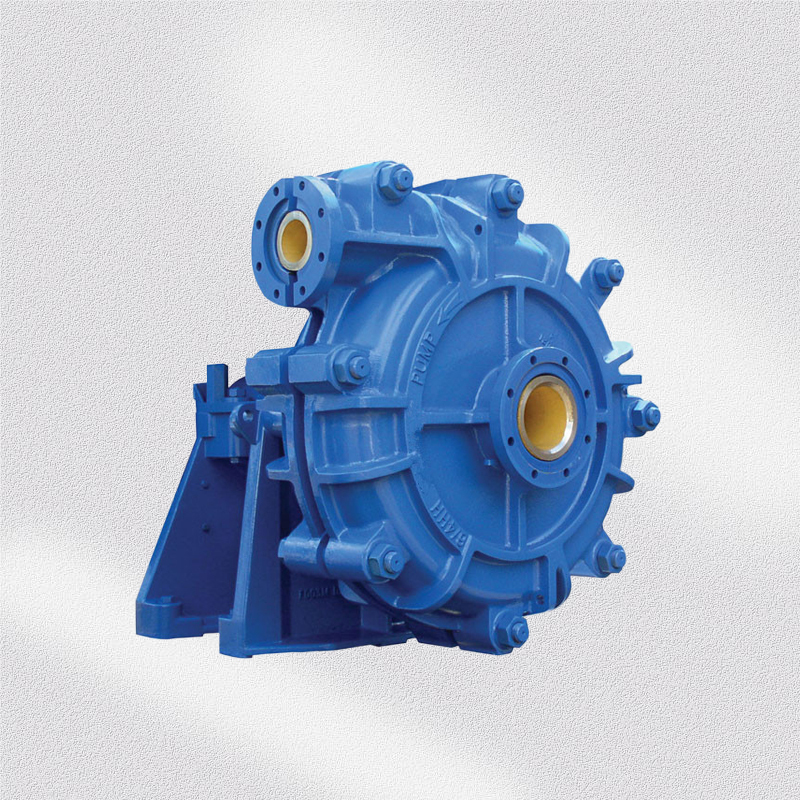

THH Series centrifugal horizontal heavy duty slurry pumps are designed for the continuous pumping of highly abrasive, dense slurries in processes from hydrocyclone feed to regrind, flotation and tailings. THH Series slurry pumps using for handing strong abrasive, high density slurries, high head slurries in the mining, metallurgical, coal, power, building material and other industrial departments.
Main Parts:

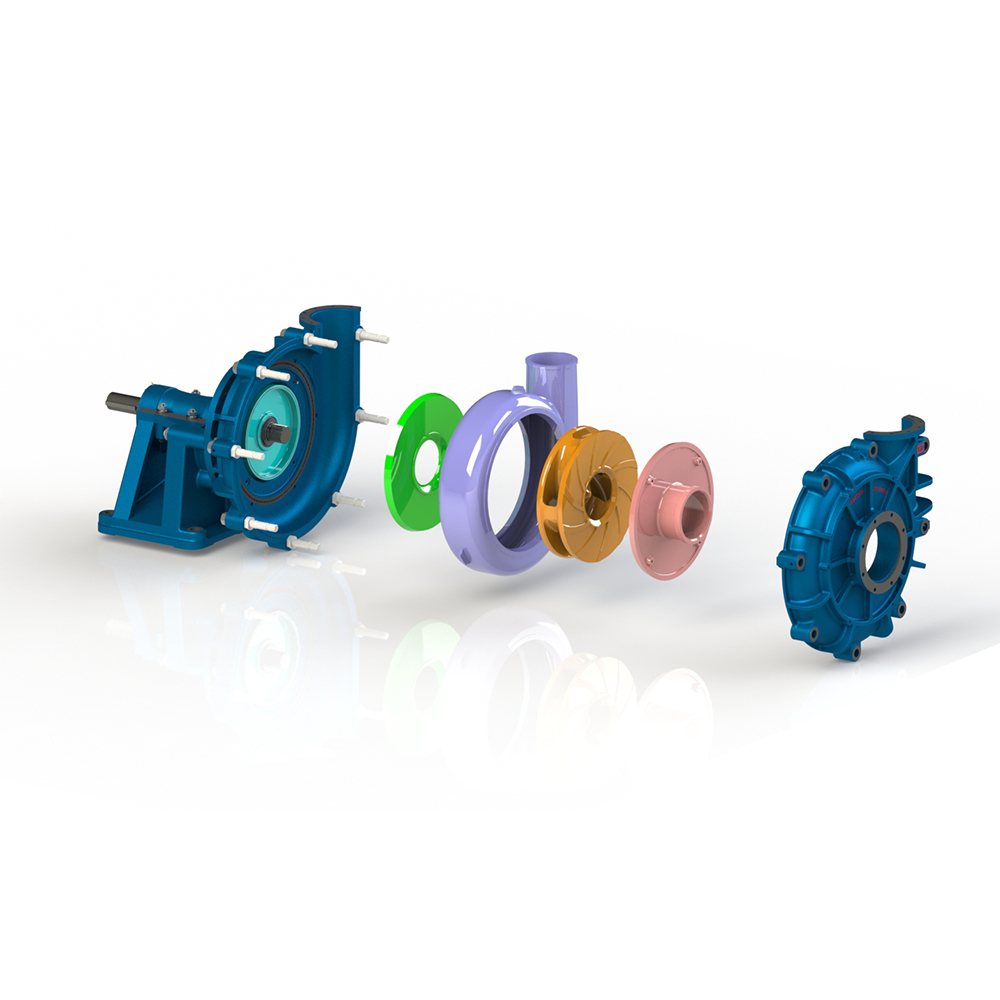

IMPELLER，LINER，STUFFING BOX，EXPELLER SEAL, VOLUTE，CASING，BEARING ASSEMBLY，PUMP BASE, etc.
Main material:
Cr27,Cr28,CD4Mcu, etc.
Advantage:
1. It can be used in various working conditions and is the most commonly used product.
2. Highly wear-resistant, with a hardness of more than 60.
3. Spare parts are standardized and easy to purchase.
NOTE:
* Kingda® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Kingda® TH series slurry pumps and spares are only interchangeable with Warman® AH slurry pumps and spares.
* This document is the property of Kingda® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
Specifications and Performance：
|
THH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET |
|||||||||
|
TYPE |
MAX |
MATERIAL |
CAPACITY |
HEAD |
SPEED |
MAX |
NPSH |
||
|
POWER |
LINER |
IMPELLER |
m3/h |
I/s |
H(m) |
n(r/min) |
η% |
m |
|
|
KW |
|||||||||
|
1.5/1C-THH |
30 |
M |
M |
16~34 |
4.5-9.5 |
25~92 |
1400-2200 |
20 |
2~5.5 |
|
3/2D-THH |
60 |
M |
M |
68~137 |
19~38 |
25~87 |
850~1400 |
47 |
3~7.5 |
|
4/3E-THH |
120 |
M |
M |
126-252 |
35~70 |
12-97 |
600~1400 |
50 |
2~5 |
|
6/4S-THH |
560 |
M |
M |
324~720 |
90~200 |
30~118 |
600~1000 |
64 |
3~8 |
|
6S-TH |
560 |
M |
M |
468~ 1000 |
130~280 |
20~94 |
500~1000 |
65 |
4~12 |
|
8/6T-THH |
1200 |
M |
M |
576-1152 |
160-320 |
32-95 |
450-725 |
65 |
6~10 |
|
THH SLURRY PUMP DIMENSIONAL DATASHEET |
||||||||||||
|
MODEL |
A |
B |
C |
D |
F |
H |
J |
M |
N |
U |
V |
WEIGHT(kg) |
|
1.5/1C-THH |
759 |
406 |
311 |
254 |
121 |
194 |
254 |
175 |
356 |
42 |
252 |
318 |
|
3/2D-THH |
986 |
492 |
364 |
330 |
205 |
254 |
368 |
213 |
432 |
65 |
299 |
750 |
|
4/3E-THH |
1240 |
622 |
448 |
457 |
248 |
330 |
432 |
257 |
546 |
80 |
381 |
1250 |
|
6/4S-THH |
1668 |
920 |
780 |
450 |
305 |
413 |
546 |
640 |
760 |
120 |
353 |
2880 |
|
6S-TH |
1700 |
920 |
780 |
450 |
310 |
415 |
615 |
640 |
760 |
120 |
382 |
3450 |
|
8/6T-THH |
2275 |
1150 |
1040 |
650 |
394 |
584 |
813 |
880 |
900 |
150 |
538 |
6586 |
|
AlI dimensions are in millimeters |
||||||||||||
Note：For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.
