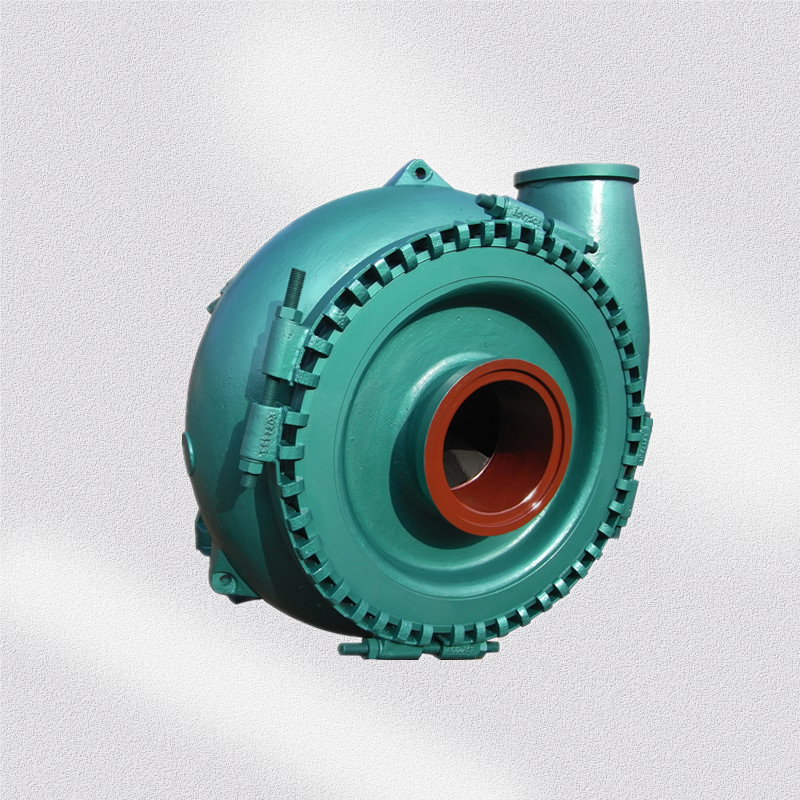

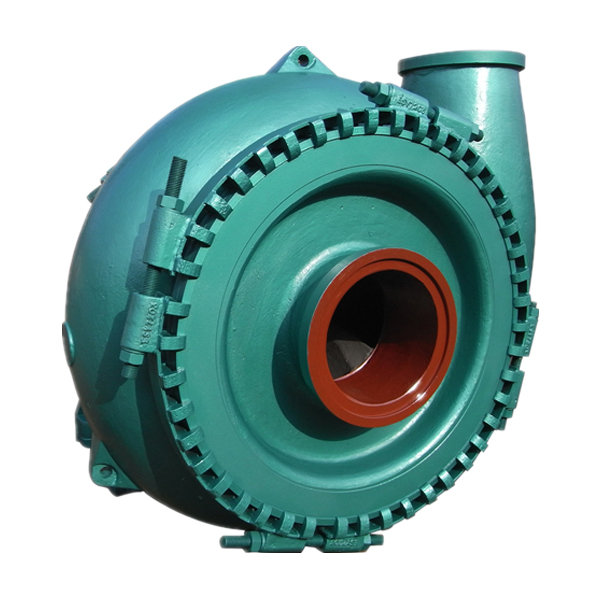

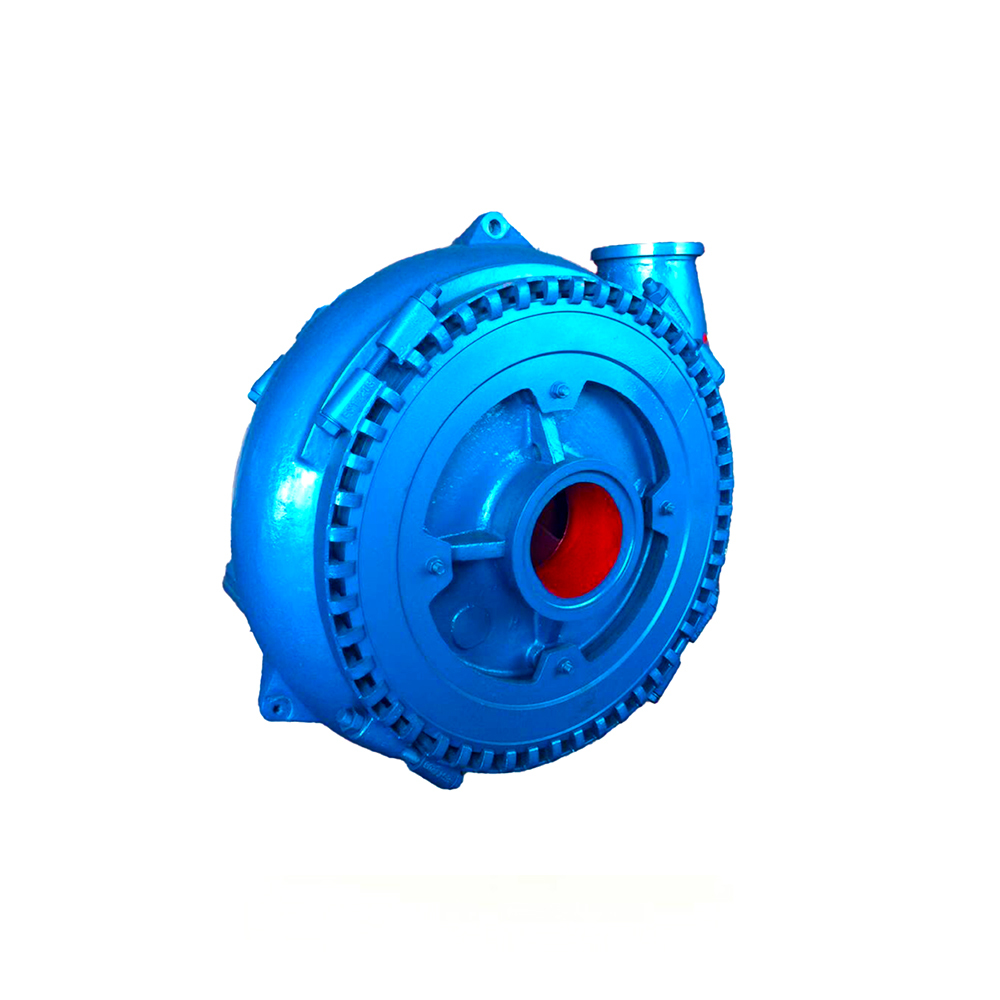

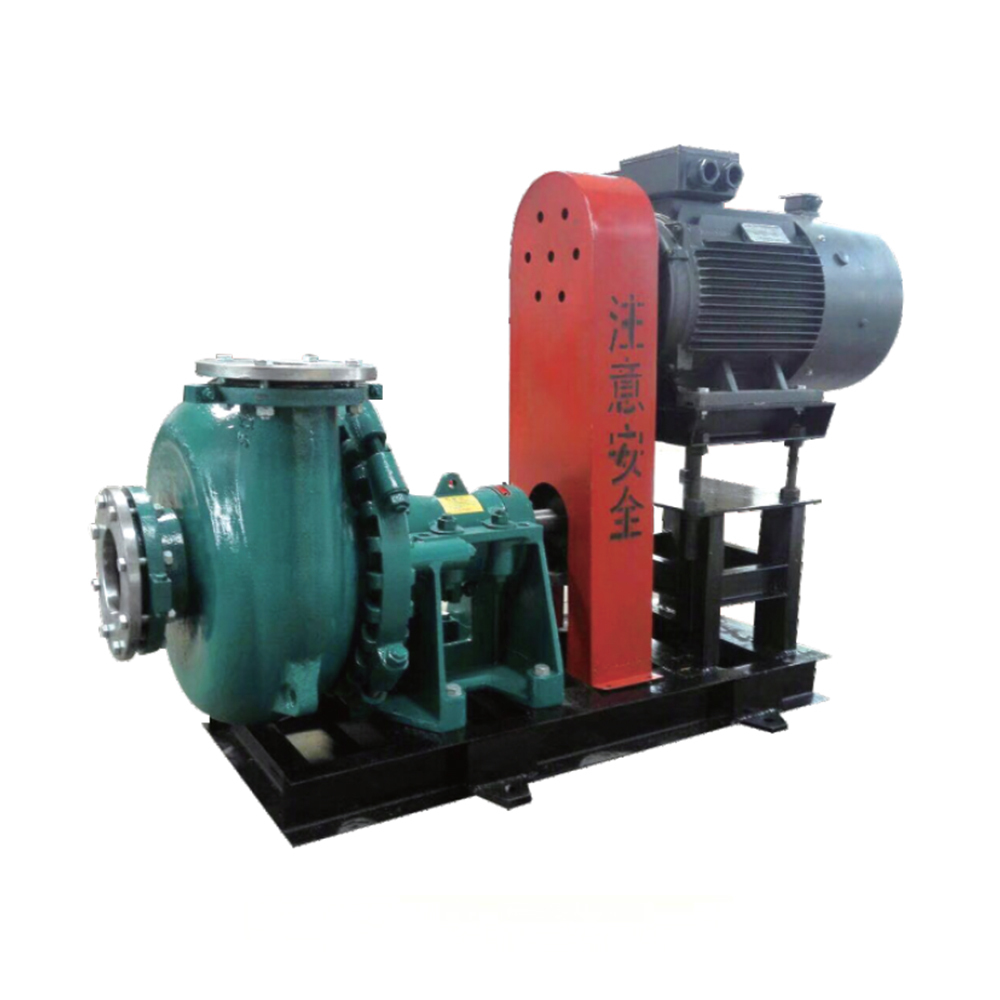

TG/TGH type gravel pumps are designed for continuously hading the most difficulthigher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining. Explosive-sludge in metal melting. Dredging in dredger and course, and other fields. The TGH type pumps are a high-head ones.
Main Parts:
Impeller,Throatbush, Frame plate adapter,F.P.L. Insert，Bowl, clamp ring, clamp plate, etc.
Main material:
Cr27,Cr28, etc.
Advantage:
1. The over-current parts are made of hard nickel, high chromium and other wear-resistant materials, which have a long service life;
2. The outlet direction of the pump can be in any position of 360 degrees;
3. It is easy to install and use, the flow channel is spacious, and good performance of NPSH and abrasion-resistance.
Specifications and Performance：
|
TYPE |
Capacity |
Head |
Speed |
Efficiency |
NPSH |
Inlet Diameter |
Outlet Diameter |
Max Diameter of flowed particle |
|
|
(L/S) |
(m3/h) |
(m) |
(r/min) |
(%) |
(m) |
(mm) |
(mm) |
(mm) |
|
|
6/4D-TG |
10-70 |
36- 252 |
3.5-51 |
600-1400 |
30-50 |
2.5-3.5 |
150 |
100 |
82 |
|
8/6E-TG |
38-161 |
137-380 |
10-48 |
800-1400 |
50-60 |
3-4.5 |
200 |
150 |
127 |
|
10/8S-TG |
60-272 |
220-1000 |
13-50 |
500-1000 |
45-65 |
3-7.5 |
250 |
200 |
178 |
|
10/8F-TG |
60-272 |
220-1000 |
13-50 |
500-1000 |
45-65 |
3-7.5 |
250 |
200 |
178 |
|
12/10F-TG |
100-420 |
360-1520 |
11-58 |
400-850 |
50-70 |
2-4.5 |
300 |
250 |
220 |
|
12/10G-TG |
100-420 |
360-1520 |
11-58 |
400-850 |
50-70 |
2-4.5 |
300 |
250 |
220 |
|
14/12G-TG |
140-880 |
500-3100 |
6-66 |
300-700 |
60-68 |
2-8.0 |
350 |
300 |
241 |
|
18/16G-TG |
240-1060 |
860-3800 |
9-48 |
250-500 |
60-72 |
3-6.0 |
450 |
400 |
254 |
|
18/16T-TG |
240-1060 |
860-3800 |
9-48 |
250-800 |
60-72 |
3-6.0 |
450 |
400 |
254 |
|
10/8S-TGH |
110-360 |
600-2200 |
18-80 |
500-950 |
60-72 |
2-5.0 |
250 |
200 |
180 |
|
12/10T-TGH |
170-260 |
400-1290 |
28-78 |
350-700 |
60-72 |
2-8.0 |
300 |
250 |
210 |
|
16/14TU-TGH |
200-1000 |
720-3600 |
20-72 |
300-500 |
60-72 |
3-6.0 |
400 |
350 |
230 |
Note：For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.
